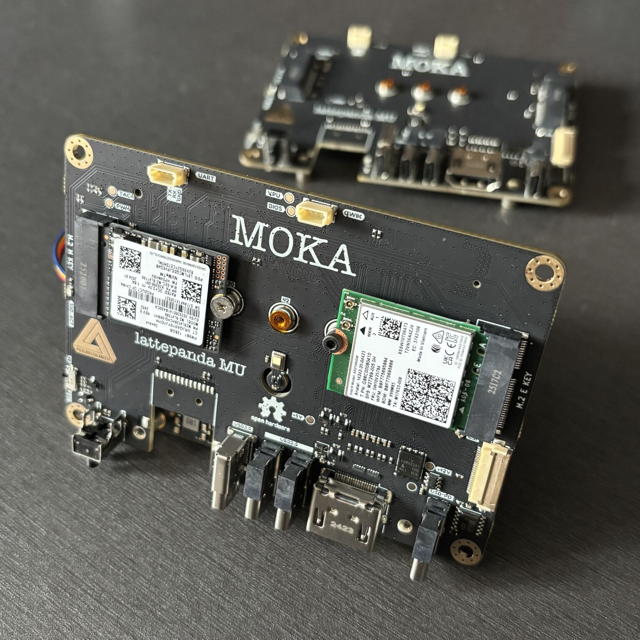

MOKA is a compact carrier board for Lattepanda MU, x86 single-board computer.
Highlights
- Gigabit ethernet
- USB-PD @ 12V
- HDMI
- USB2.0 2X
- USB3.0
- M-Key M.2 PCIe 2230/42
- E-Key M.2 PCIe 2230/42
- CSI camera
- Debug UART
- QWIIK I2C
- FAN

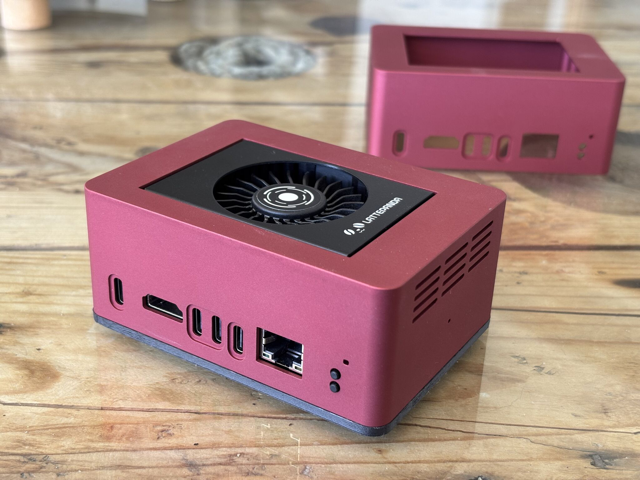

Custom Aluminum Case
Interactive KiCad viewer
Explore the MOKA project directly in the browser, including the full schematic hierarchy and PCB layout.
Link to Github repository
https://github.com/piecol/lattepanda_MOKA
